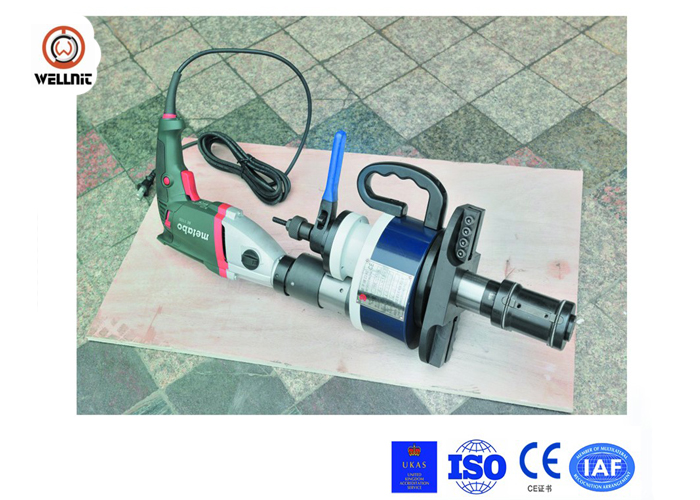

Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min

Product Categories
Zhejiang Wellnit Mechanical Technology Co.,Ltd
Contact Now

Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min

  • 1
  • 2

Brand Name : Wellnit

Model Number : ISM-252-2

Certification : ISO9001

Place of Origin : China

MOQ : Negotiable

Payment Terms : T/T

Supply Ability : 50 sets for a mounth

Delivery Time : within 7 days after received 100% payment

Packaging Details : plywooden

Power : 220-240V 50-60Hz

Operation : Penumatic

Pipe Thickness : Less than 75 (Standard)

Rotation : 16r/min

Working Method : No Spark,Cold Working

Installation way : Inside Mounted

Motor Power : 1600W

Working Range : 80-273mm(Inside Diameter)

Price : Negotiable

Contact Now

Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min


The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.

This machine isn't standard product. It is designed according to requirement of customer. It has advantages of small size, good appearance, easy operation, high precision and good performance etc.

advantages:

  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required.

Spcification:

ISM-252-2 Beveling Machine
Voltage 220-240V
Frequency 50-60Hz
Power 1600W
Wall Thickness ≦75
Working Range 80-273mm
Rotation Speed 16r/min
Net Weight 58kg


Non-standard machines are available according to customers’requirement.


Model
Working Range (ID/OD)
Wall Thickness
Rotation Speed

ISM-30
Φ16-28		 Φ19-38
≤15
50r/min

ISM-80
Φ28-76		 Φ32-89
≤15
55r/min

ISM-120
Φ40-110
Φ48-120
≤15
30r/min

ISM-159
Φ65-159		 Φ72-168
≤20
35r/min

ISM-252-1
Φ80-240		 Φ90-273
≤20
16r/min

ISM-252-2
≤75
16r/min

ISM-352-1
Φ150-330
Φ160-356
≤20
14r/min

ISM-352-2
≤75
14r/min

ISM-426-1
Φ250-410
Φ260-430
≤20
12r/min

ISM-426-2
≤75
12r/min

ISM-630-1
Φ300-600
Φ320-630
≤20
10r/min

ISM-630-2
≤75
10r/min

ISM-850-1
Φ590-830
Φ610-850
≤20
9r/min

ISM-850-2
≤75
9r/min

Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min

Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min

Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min
