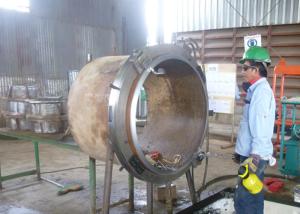

Portable 56inch Tube Cold Cutting And Groove Machine Automatic Feed
The main of performance
The series of products produced by our company are special for welded pipes and field processing and repair pipes. This product is also called pipe welding equipment.This product can process after welding the convex flange,also can be used for the beveling of U-shaped and V-shaped welded pipe.
The function of Product
1.Lower axial , radial clearance,lightweight , easy to carry out.
2.Cold cutting and beveling simultaneously,no spark , no burr.
3.Can separate to two half,its easy for both end sealed pipe directly installation
4.Easy to set-up,easy to operation.
5.Process carbon steel,stainless steel,alloy etc with U,V,J compound bevel
6.Driven:Electric,Pneumatic,Hydraulic,Metabo
Widely used in petroleum,chemical,natural gas,food,boiler etc industry.
The specification of product
| Driven | Model | Working Range(I.D-O.D) | Wall Thickness | Rotation Speed |
| | 89 | 25-89 | 1"-3" | | 42r/min |
| | 159 | 50-159 | 2"-5" | | 20r/min |
| | 168 | 50-168 | 2"-6" | | 18r/min |
| | 230 | 80-230 | 3"-8" | | 15r/min |
| | 275 | 125-275 | 5"-10" | | 14r/min |
| OCE | 305 | 150-305 | 6"-10" | | 13r/min |
| Electric | 325 | 168-325 | 6"-12" | | 13r/min |
| | 377 | 219-377 | 8"-14" | Standard | 12r/min |
| OCP | 426 | 273-426 | 10"-16" | <=30mm | 12r/min |
| Pneumatic | 457 | 300-457 | 12"-18" | | 12r/min |
| | 508 | 355-508 | 14"-20" | | 12r/min |
| OCH | 560 | 400-560 | 16"-22" | | 12r/min |
| Hydraulic | 610 | 457-610 | 18"-24" | | 11r/min |
| | 630 | 480-630 | 20"-24" | Heavy-Duty | 11r/min |
| OCM | 660 | 508-660 | 20"-26" | <=100mm | 11r/min |
| Metabo | 715 | 560-715 | 22"-28" | | 11r/min |
| | 762 | 600-762 | 24"-30" | | 11r/min |
| | 830 | 660-813 | 26"-32" | | 10r/min |
| | 914 | 762-914 | 30"-36" | | 10r/min |
| | 1066 | 914-1066 | 36"-42" | | 10r/min |
| | 1230 | 1066-1230 | 42"-48" | | 10r/min |
| | 1430 | 1230-1430 | 48"-56" | | 8r/min |
| Note:Non-Standard Machines are available according to customer's requirement. |
OCE mean that driven is Electric
OCP mean that driven is Pneumatic
Pnuematic driven need meet air requirements.
Power supply:0.8-1.0MPa
Air consumption:1000-2000L/Min
OCH mean that driven is Hydraulic
need have hydraulic station
OCM mean that driven is Metabo
Different Model that Working Range is different.
Before place order ,please provide more details about your pipe,
We will recommend suitable machine to you.
1.PIPE SIZE (O.D):
2.PIPE THICKNESS:
3.PIPE MATERIAL:
4.DRIVEN:
